Product introduction
MATERIAL:

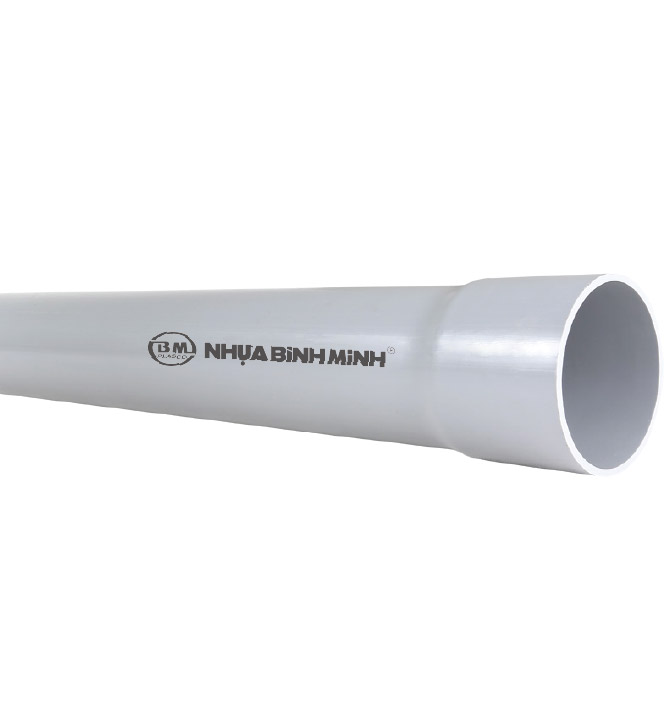

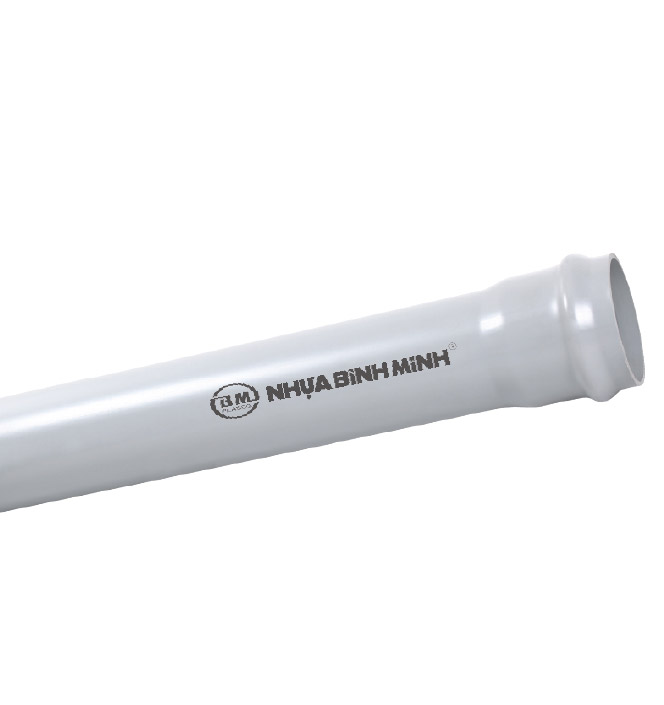

Inch rigid PVC pipes and fittings are manufactured from unplasticized PVC plastic compounds.
APPLICATION FIELDS:
Suitable for water supply systems in the following applications:
- Drinking water distribution.
- Water supply and irrigation systems in agriculture.
- Industrial pipeline systems.
- Wastewater drainage systems, rainwater drainage, ...
These pipe systems are selected underground or above ground, installed inside or outside the house and must be protected from sunlight directly.
PHYSICAL PROPERTIES:
| Density: |
1.4 |
g/cm³ |
| Minimum tensile strength: |
45 |
MPa |
| Thermal expansion coefficient: |
0.08 |
mm/m.°C
|
| Surface resistivity: |
1013
|
Ω |
| Permissible working temperature: |
0 to 45 |
°C |
| Minimum vicat softening temperature (pipe): |
80 |
°C |
| Minimum vicat softening temperature (fittings): |
74 |
°C |
CHEMICAL PROPERTIES:
- Resistant to:
- Acid solutions.
- Alkaline solutions.
- Not resistant to:
- Concentrated oxidizing acids.
- Aromatic solvents.
WORKING PRESSURE:
Working pressure is the maximum allowable pressure for water temperatures up to 45°C. Working pressure is calculated according to the formula:
Plv= K x PN
Where:
Plv: Working pressure.
K: Pressure drop coefficient for water temperature, K is determined as in table 1a or figure 1a
PN: Nominal pressure.
Table 1a: K for rigid PVC pipes
| Water temperature, °C |
Pressure drop coefficient, K |
| 0 < t ≤ 25 |
1.00 |
| 25 < t ≤ 35 |
0.80 |
| 35 < t ≤ 45 |
0.63 |
Note: When more precision is needed, K can be chosen according to figure 1a.
